Betaview®
The perfect combination of security and aesthetics
SECURITY
Robust wire and weld joints make cutting through the system using conventional bolt or wire cutters very difficult, while small mesh apertures offer no toe or finger holds. A saw-tooth panel top is available for added security
VISIBILITY
The panels have excellent visibility characteristics and from a distance appear almost invisible, offering unobstructed camera surveillance from the front or at an angle
DURABILITY
The wire is Zincalu®-coated, resistance-welded and PVC-coated with maximum adhesion to guarantee an extra-long lifespan
10-YEAR GUARANTEE
State-of-the-art PVC-coating technology underpins our 10-year, insurance-underwritten, anti-corrosion guarantee when original Betafence panels, posts and fixators are used.

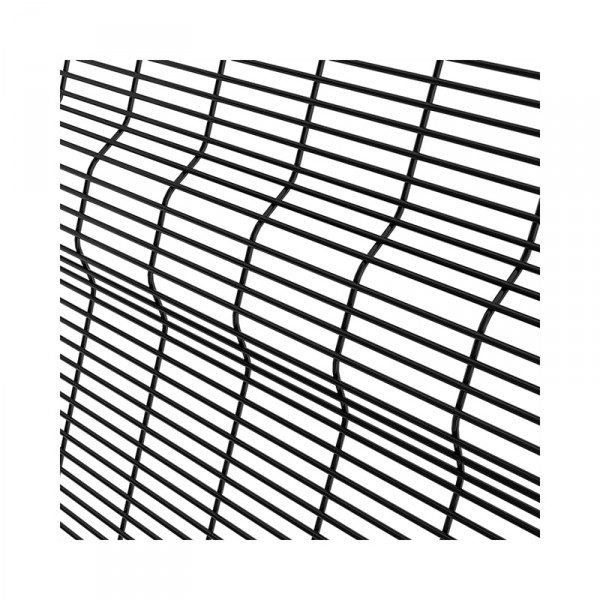

Panels specifications
- Panel width: 3048 mm
- Aperture: 76.2 x 12.8 mm
- Core wire diameter: 3 mm
- Wire diameter after pvc coating: 3.4 mm
Bekafix® Secure Post
The Bekafix® Secure Post is a hollow “H” profile post with the dimensions of 70 x 44mm x 2mm. This post is made from a rolled sheet then hot dip galvanised and PVC coated to a minimum thickness of 200 microns using Betafence’s fluidised bed PVC coating machine. Panels are attached behind the front lip of the post using spider fixators and stainless steel security bolts which go through the post for added security. They are secured by shear of nuts to ensure that they are tamper proof.
Bekafix® Super Secure Post
The Bekafix® Super Secure post is a hollow “H” profile post with the dimensions of 10 x 54mm. This post is made from a rolled sheet then hot dip galvanised and PVC coated to a minimum thickness of 200 microns using Betafence’s fluidised bed PVC coating machine. Panels are attached behind the front lip of the post using spider fixators and stainless steel security bolts that go through the post for added security. They are secured by shear of nuts to ensure that they are tamper proof.
Square Post
The Square Post is a 70 x 70 x 1.6mm post that has been hot dipped galvanised and then PVC coated using Betafence’s fluidised bed coating machine to apply a uniform lead free PVC coating. Panels are attached to the front face of the post using a spider fixator and security bolt.
| Bekafix Secure Posts | Bekafix Super Secure Posts | Square Posts | |||||
|---|---|---|---|---|---|---|---|
| Fence height
(mm) |
Panels
Width x Height (mm) |
Number of reinforcements
per panel |
Post length
(mm) |
Number of fixings
per post |
Number of fixings
per post |
Number of fixings per
intermediate & end post |
Number of fixings per
corner post |
| 1785 | 3048 x 1785 | 3 | 2600 | 12 | 12 | 6 | 12 |
| 1988 | 3048 x 1988 | 3 | 2600 | 14 | 14 | 7 | 14 |
| 2392 | 3048 x 2392 | 4 | 3200 | 16 | 16 | 8 | 16 |
